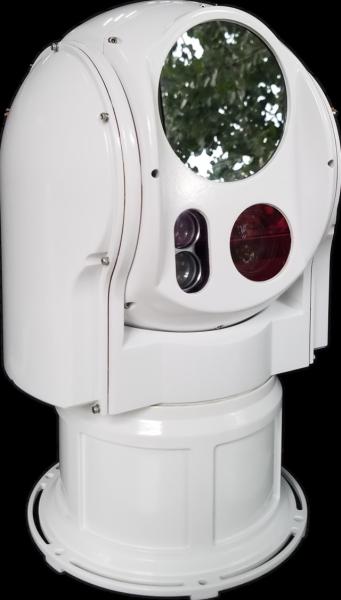

Full Sealing High Accuracy Multi Sensor Surveillance Radar System

  • 1
  • 2
  • 3

Brand Name : JOHO

Model Number : JHS209-S08

Certification : ISO9001

Place of Origin : China

MOQ : 1PC

Supply Ability : 50 Sets/Year

Delivery Time : 2 months

Packaging Details : Customized Aluminum Alloy Case

Applications : Targeting, Searching, Tracking

Configuration : Thermal Imaging Camera,Day Night Camera, Laser Range Finder

Stabilization Accuracy : 0.5mrad (1σ)

Spectral Band : 8μm~12μm

Optical Zoom : 30x

Focus Length : 80mm

Video Interface : PAL

Features : Full-sealing,waterproof

Communication : RS422/RS232

Operating Temperature : -20ºC ~ +40ºC

Contact Now

Full-sealing High Accuracy Multi-Sensor Surveillance Radar System

JHS209-S80 shipborne photoelectric system is a search and tracking system which integrates optics, mechanics and electricity. Because the weight is less than 10 kg, it integrates gyro stabilization and target tracking functions, and mainly focuses on day and night surveillance on warships.

Function

1) Using network interface communication and wireless communication technology, different operation with ground workstation and video image transmission are realized.

2) Video tracking can be carried out to achieve manual/automatic locking and tracking.

3) High precision calibration to ensure the integration of visible light, infrared light and laser ranging.

4) The control handle is used to control the attitude of the photoelectric turret.

5) Data transmission mode, azimuth angle, elevation angle and so on.


Features

1) Multi-sensor IR + TV + LRF.

2) Small size, light weight, compact structure, strong adaptability carrier, low power consumption and high cost performance.
3) Equipped with horizontal and pitch axis stabilization, combined with high accuracy gyroscope and servo control system, it can realize detection without dead angle and support day and night observation.
4) Full-sealing, high level waterproof, optical mechanical and electrical integration design, strong capability of anti-vibration and anti-shock makes it capable of working under severe environment for a long time.


Technical Specification

Thermal Camera
Detector Uncooled Vox FPA
Pixel 640*512
Pitch 17mm×17mm
Spectral Band 8μm~12μm
FOV (HxV) 18°x14°
Frame Frequency 25Hz
Focus Length 80mm
Video Interface PAL
Day Light Camera
Detector 1/2.8-type CMOS CCD
Pixel 1920*1080
Optical Zoom 30x
Video Interface 1 Analog Video, 1 Digital Video HD-SDI
Laser Range Finder
Wavelength 1.55μm
Beam Spread Angle ≤1.0mrad
Ranging Distance 30m~6km
Ranging Accuracy ≤±2.5m
Measuring Rate ≥90% (Visibility≥10Km, Target 2.3m×2.3m)
Servo
Stabilization Accuracy 0.5mrad (1σ)
Turret Direction Range Azimuth: 360° (continuous); Pitch: -60°~+60° (0°is horizontal direction, up is positive, down is negative)
Turret Maximum Angle Speed
Azimuth ≥30°/s
Pitch ≥30°/s
Communication RS422/RS232
Environmental
Operating Temperature Range -20ºC ~ +40ºC
Storage Temperature Range -30ºC ~ +50ºC
Power
Power Supply DC 24V/15A, DC28V/20A
Power Consumption DC24/96W (avg.)/240W (Max.)
DC28V/28W(avg.)/70W (Max.)
Physical
Dimension Turret ≤ Φ300× 480
Control Box ≤364 mm X 200.5 mm X 137.5mm
Weight <10kg
